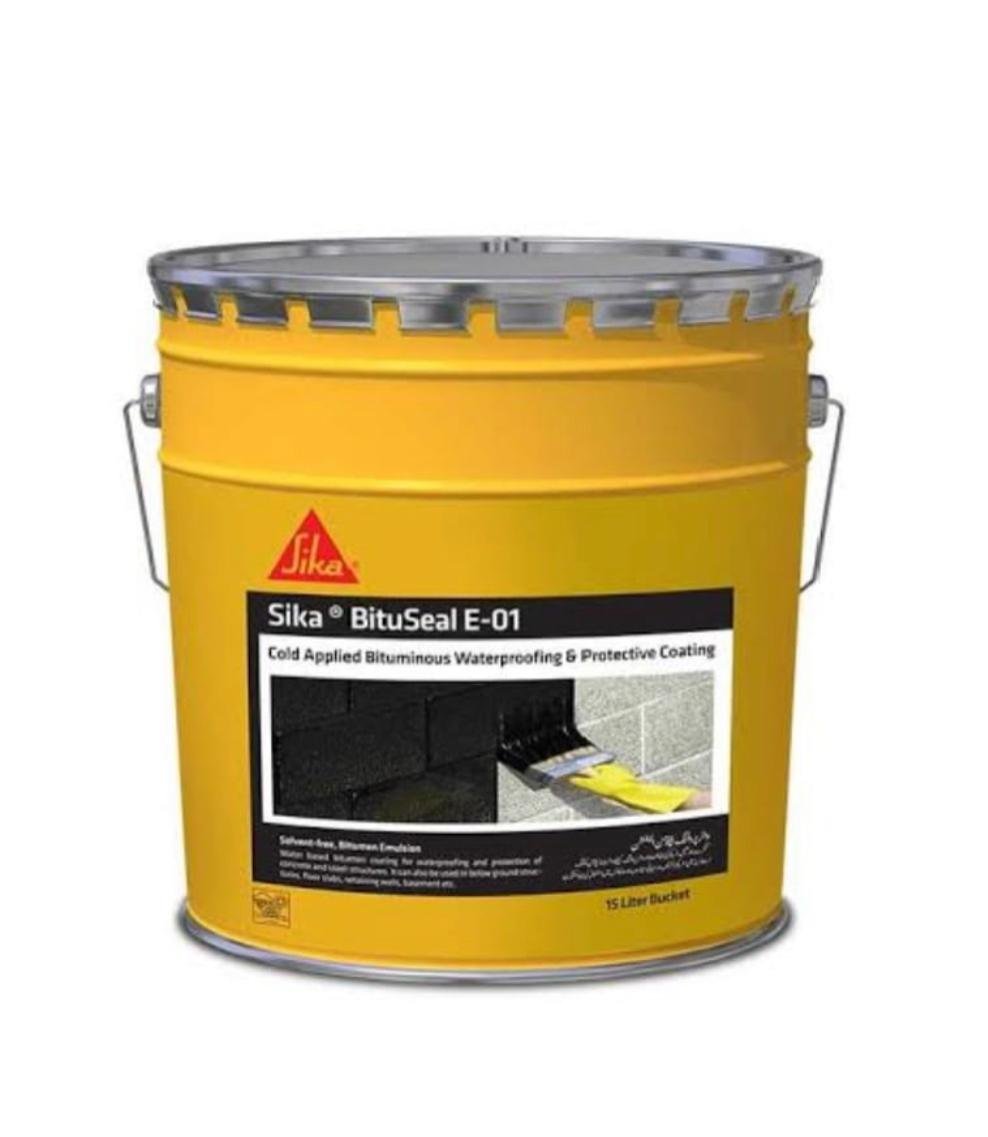

Sika Bitumen E-01

USES
To protect concrete surfaces against attack of aggressive soils & subsequent backfills; such as :
▪ Retaining walls.
▪ Basements.
▪ Columns.
▪ Foundations.

CHARACTERISTICS / ADVANTAGES
As Coating:
▪ Easy application (Brush, roller or airless spray).
▪ No heating required.
▪ Increased coverage rates.
▪ Adheres firmly on most building surfaces.
▪ High resistance to aggressive chemicals and salts.
APPROVALS / STANDARDS
ACI 515 IR-79. Guide to use of waterproofing, damp
proofing, protection and decorative barrier systems
for Concrete. Chapter 2 section 2.1.1, 2.1.2 and 2.1.3
ASTM D1227 type 3 class 1
Sika Bitumen® -W has been tested as per SCAQMD
Rule 1168.
Result : VOC Content 0 g/l.

PRODUCT INFORMATION
Chemical Base Bituminous Emulsion
Packaging 14 Kg pails
200 kg drums.
Colour Black
Shelf Life 12 months from date of production if stored properly in original unopened
packing
Storage Conditions In dry conditions and under maximum temp. 45 °C.
Density 0.9 ± 0.05 kg/l
APPLICATION INFORMATION
Consumption 0.4 – 0.6 Kg/m2 for 2 coats depending on substrate porosity
Waiting Time / Overcoating Min. 2 hours (depending on temperature)

BASIS OF PRODUCT DATA
All technical data stated in this Product Data Sheet are
based on laboratory tests. Actual measured data may
vary due to circumstances beyond our control.

ECOLOGY HEALTH AND SAFETY
Ecology
In liquid state form, material will contaminate water
and soil.
Dispose of product residues according to local regulations.

Safety Precautions
Sika Bitumen® may cause irritation to the skin and/or
mucous membrane of sensitive people. If the material
accidentally splashes into eyes, flush immediately with
warm waters and seek medical representative.
Always wears protective gloves and goggles during
mixing and application.APPLICATION INSTRUCTIONS
SUBSTRATE PREPARATION
All surfaces must be clean, free from grease, oil, standing water and all loosely adhering particles.
MIXING
Stir material before applicationAPPLICATION METHOD / TOOLS
Sika Bitumen® can be applied by brush, roller or airless spray gun.
▪
Normally two or three coats are required, depending
on the degree of protection required.
▪
When Sika Bitumen® has to be covered with a
screed, the final coat should be blinded with clean
dry sharp sand as soon as it applied, after drying the
excess sand should be brushed off.
▪
CLEANING OF TOOLS
Clean with water for non-hardened material, for
hardened materials use Sika Thinner 2.

LOCAL RESTRICTIONS
Please note that as a result of specific local regulations
the performance of this product may vary from country to country. Please consult the local Product Data
Sheet for the exact description of the application
fields.
LEGAL NOTES
The information, and, in particular, the recommendations relating to the application and end-use of Sika
products, are given in good faith based on Sika’s current knowledge and experience of the products when
properly stored, handled and applied under normal
conditions in accordance with Sika’s recommendations. In practice, the differences in materials, substrates and actual site conditions are such that no warranty in respect of merchantability or of fitness for a
particular purpose, nor any liability arising out of any
legal relationship whatsoever, can be inferred either
from this information, or from any written recommendations, or from any other advice offered. The
user of the product must test the product’s suitability
for the intended application and purpose. Sika reserves the right to change the properties of its
products. The proprietary rights of third parties must
be observed. All orders are accepted subject to our
current terms of sale and delivery. Users must always
refer to the most recent issue of the local Product
Data Sheet for the product concerned, copies of which
will be supplied on request. It may be necessary to adapt the above disclaimer to specific local laws and regulations. Any changes to this disclaimer may only be
implemented with permission of Sika® Corporate Legal in Baar.
